Crating and Industrial Packaging: Panels That Take Loads
A crate is a structural object with a short life and a long journey. Panels for it are chosen for stiffness under stacked weight and for a smooth interior face that will not mark a machined part in transit. The manufacturer's own definition of the panel is unusually clear — a C-grade face, a D-grade back and an X for exterior glue — which is exactly the information a packaging engineer needs to specify it.
Key takeaways
- The grade letters describe the build: C-grade face, D-grade back and Exterior glue for the bond.
- Construction-grade pine veneers are laid cross-laminated, a build the manufacturer links to panels that resist warping and splitting when they are loaded.
- Crating, heavy-duty crates and pallets are named applications, alongside sheathing, decking and subfloors.
- The exterior glue resists moisture and rain during construction phases, but these panels are not intended for permanent weather exposure.
Reading the letters on the panel
CDX is a shorthand with three separate meanings, and unpacking it saves arguments at goods-in. The C refers to the face veneer grade, the D to the back, and the X to an exterior glue line. The two faces are deliberately different grades: one is good enough to face a customer, the other only has to hold together.
Understanding that split is what makes the panel economical. A packaging engineer can put the C-grade face on the inside of a crate where it protects the contents, and leave the D-grade back to the weather and the forklift. There is no reason to pay for two good faces on a box that will be opened once at the far end of a shipping route.
Crates and pallets: following the load path
Load in a crate arrives in three directions. Weight presses down through the base, racking pulls the sides out of square during lifting, and impact from handling arrives at the corners. Alternating the grain direction from ply to ply is what counters the first two, and the manufacturer credits that cross-laminated build with keeping panels from warping or splitting once a load is sitting on them.
Design the load path before choosing the thickness: bearers under the base, corner battens that stop racking, and a lid that ties the sides together. A panel of any thickness will sag if the span between bearers is too wide, and the lower-cost answer is usually closer bearer spacing rather than a heavier board.
The wider application list
| Application | Named use | Panel duty |
|---|---|---|
| Crating and packaging | Heavy-duty crates and pallets | Stiff base and sides that hold their shape in transit |
| Roofing | Roof decking, shingle and tile underlayment | Continuous substrate that takes fixings without splitting |
| Walls | Exterior wall sheathing | Racking resistance while the cladding is fitted |
| Floors | Subfloor and underlayment for carpet, laminate or vinyl | Flat surface under a finished floor covering |
| Temporary works | Hoarding, fencing and temporary floors | Site segregation and access that is later removed |
Indoor use is equally normal. Subfloors, wall bracing and structural frames all appear on the list, which tells you the panel is not a specialist product kept for outdoor packing jobs only.
Worked example: how much panel a crate order needs
Take a crate 1.2 m long, 1.0 m wide and 0.8 m high. The two long sides are 1.2 m × 0.8 m = 0.96 m² each, the two ends are 1.0 m × 0.8 m = 0.8 m² each, and the base and lid are 1.2 m × 1.0 m = 1.2 m² each. The total is (2 × 0.96) + (2 × 0.8) + (2 × 1.2) = 5.92 m² of panel.
One standard sheet, at 1220 × 2440 mm, comes to 2.98 m² of surface (1.22 m × 2.44 m), so a single crate takes 5.92 ÷ 2.98 = 1.99, or two sheets with nothing left for damage. Add a 10% cutting allowance and the requirement becomes 6.51 m², so three sheets. For 200 crates that is 200 × 5.92 = 1,184 m² of panel, roughly 438 sheets at 2.98 m² each with the same allowance — example arithmetic, since bearer and batten stock also comes off the same order.
What exterior glue does and does not cover
The Exterior glue line is a bond rating, not a waterproofing promise. It means the adhesive survives wetting and drying during a build, which is why these panels can be used for roof decking or sheathing and left exposed to rain for a period before the covering goes on. The manufacturer is explicit that the panels are best suited to applications where they are not permanently exposed to weather.
For a crate travelling by sea, that translates into a practical rule: the panel handles humidity and condensation inside a container, but joints and cut edges still deserve a seal, and a crate standing on a quay in the rain for a fortnight should have its open faces protected. Bond class and edge sealing solve different halves of the same problem.
Inspection and export packing
Two checks catch most problems on delivery. Measure thickness at three points across a sheet, because variation across a batch shows up as rocking in a stacked frame, and inspect a cut edge for voids where the core plies did not consolidate. Both are visible without equipment beyond a tape and a good light.
For export packing, ask about the wrapping as well as the panel. Protective wrapping, steel strapping and wooden pallets are the standard export presentation, and custom packing and labelling can be arranged for large projects. A packaging buyer who receives panels that are already strapped and labelled spends less time preparing them for the next dispatch.
Where a specification usually goes wrong
Most disappointments come from using a panel outside its listed purpose rather than from a manufacturing fault. Sheathing stock left in permanent ground contact, a crate base built without bearers, a subfloor laid without a moisture barrier — each is a design decision, and each shortens the panel's life far more than the grade of the face.
The specification that avoids them names four things: the grade of each face, the bond class, the thickness, and the span the panel will actually cross. A CDX Pine Plywood quotation should answer all four, and a supplier that presses its own pine veneers can reply from the same production record rather than from a catalogue.
Frequently asked questions
Can this panel be left outdoors permanently?
No. The exterior glue resists moisture and rain during construction phases, which makes it suitable for decking, sheathing and temporary structures. The manufacturer recommends it for applications where panels are not permanently exposed to weather, so plan a covering or a coating for anything that stays outside.
What is the difference between the two faces on a CDX panel?
The face is a C grade and the back a D grade, so the two surfaces are deliberately unequal. Put the better face where it is seen or where it protects the contents, and let the back take handling and weather. Paying for matched faces on a crate is unnecessary cost.
Which applications are named for indoor use?

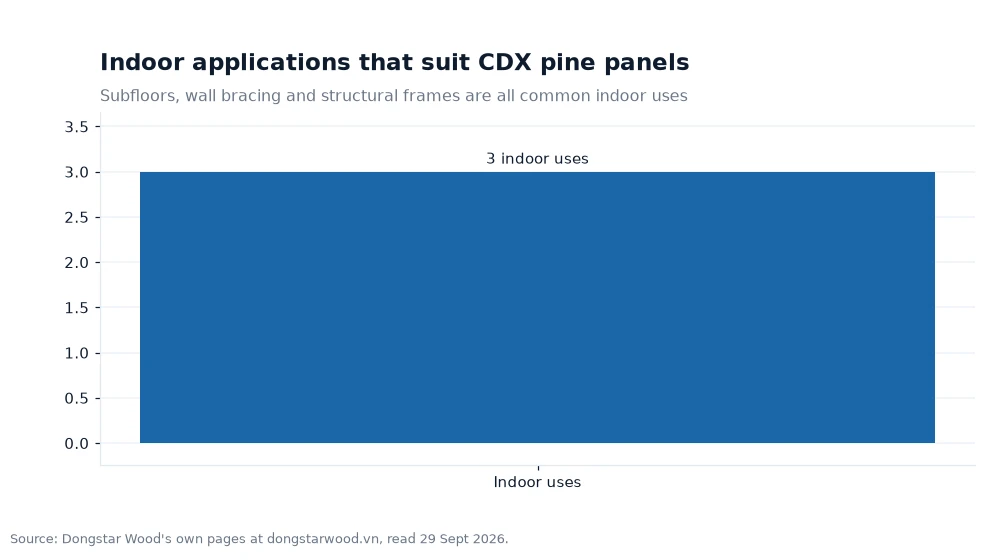

Subfloors, wall bracing and structural frames are all listed as common indoor applications, alongside underlayment under carpet, laminate or vinyl. Indoors the panel's contribution is flatness and racking resistance rather than weather performance.
Where to take the specification next
Match the application to the published use list before ordering, and confirm which face grade is quoted for the visible side. The full detail for these panels — definition, applications and the moisture guidance — is set out on the CDX pine product page. Where a packaging job needs a smoother interior face than pine gives, the commercial panel catalogue compares five face veneers and four cores, and the factory and certification summary covers the production and export side if your customer asks for it.
